Outlet 👏 Mon Ster 49cc/52cc Scooter Engine With Manual Pull Start ✨

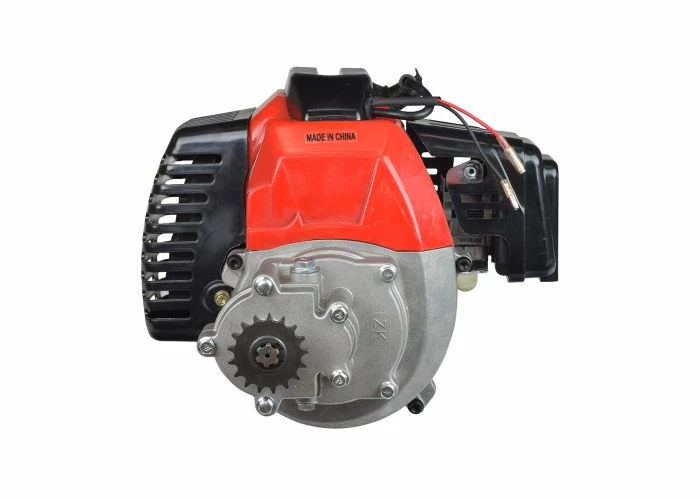

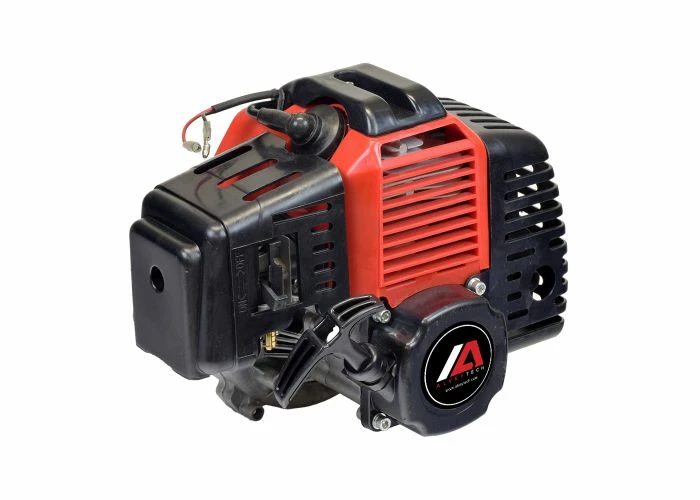

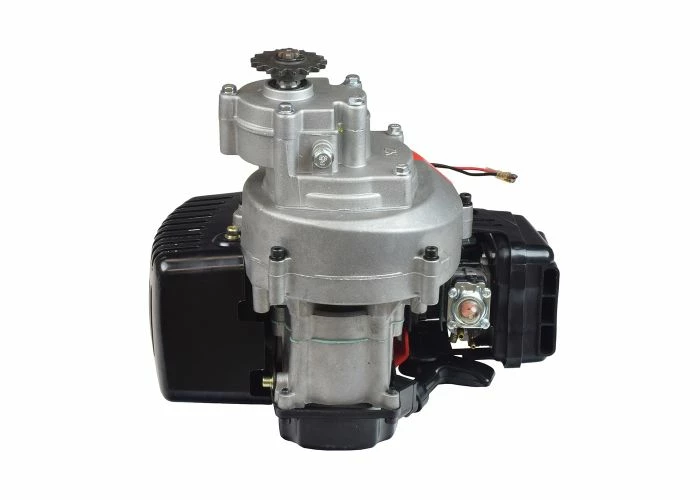

Complete 49cc scooter engine with manual pull start.

Fits the majority of gas scooters, pocket bikes, and mini choppers. High quality replacement engine. With the transmission attached, this engine rotates in a clockwise direction when viewing the face of the sprocket.

Includes transmission (with 8 mm 05T chain sprocket), standard muffler, carburetor, air filter, clutch pad assembly, and pull start.

Compatible gas scooter parts for this engine are available at the links below:

Carburetor

Scooter Carburetor for 43cc, 49cc, & 52cc Engines with 15 mm Intake

Ignition Coil

Ignition Coil for 2-Stroke Engines 49cc/52cc with 70mm Mounting Hole Spacing

Exhaust Pipe

Chrome Exhaust Pipe for 33cc, 36cc, 43cc, 49cc & 52cc Engines with 1-9/16″ Mounting Holes

Exhaust Muffler Cover

Exhaust Muffler Cover for 49cc/52cc Scooter Engines

Transmission

Standard Scooter Transmission with 20-Tooth (8mm 05T) Chain Sprocket

Mounting Brackets

Engine Mount for 33cc – 52cc 2-Stroke Engines

Two Shoe Clutch Assembly

Clutch Pad Assembly with 2 Shoes

Pull Start

GS Moon Pull Start

PLEASE NOTE:
The transmission is sent without transmission fluid and must be filled by the user. We recommend 80W-85 transmission or gear oil.

This scooter engine is compatible with all 49cc and 52cc applications using OEM engines that visually look like the detailed picture on the item page. This engine is not compatible on any Bladez brand gas scooters.

This 2-stroke 49cc engine is used quite frequently on custom projects and applications. Please ensure this scooter engine will provide the form, fit, and function needed on your custom scooter, go kart, gas powered bicycle, or other personal transportation vehicle prior to ordering!

⚠ WARNING California Residents: Proposition 65 Warning

Fuel/Oil Mixture Ratio: 25:1

Top Through Hole Diameter M.B: 0.295″

Bottom Mounting Brackets: 6.6 cm

Bottom Through Hole Diameter M.B: 0.291″

Exhaust Diameter: 0.545″

Wiring: Small black/red wires: kill switch

Length: 10″ (black cover to black cover)

Height: 8.5″ (bottom to top black cover)

Tall Piece Mounting Hole Distance: 10.9 cm

Tall Piece Mounting Diameter: 0.265″

Pull Start Mounting Holes: 6.7 cm

Weight: 10.45 lbs

Engine Type: Two-Stroke

Rotation: Clockwise

Cooling System: Air cooled

Displacement: 49cc

Max Power: 1.4kb/6500 rpm

PTO Shaft Rotation: Counter-clockwise

Carburetor: Diaphragm

Starting System: Recoil

Ignition System: CDI

Net Weight: 4.2kg

Package Dimensions: 270mm x 244mm x 249mm
